.....the system designer/installers' source for innovative products designed to keep audio/video equipment and home theater installations cool....... quietly!
System 2
System 2
Kit
In response to requests for a ventilating system for smaller enclosures, Active Thermal Management offers the System 2, designed to be the low-cost, simple-to-install venting solution for smaller heat loads in smaller cabinets (and smaller budgets!). The System 2 is available in three formats; as a fully-assembled unit (as shown above), and in 2 modular (kit) versions.
The System 2 is comprised of either two or four 120 mm fans and control electronics. The control electronics receives information about the temperature of the equipment from thermistor probes which sense the enclosure temperature, and sends a temperature-controlled pulse-width modulated signal to the fans. At room temperature, the fans are off. As the air within the enclosure warms, they begin to turn slowly, speeding up as the enclosure warms. When the equipment is turned off, and the temperature in the enclosure falls, the fans gradually slow, stopping when all heat has been removed from the equipment and enclosure. No other controls or triggers are needed - the System 2 is fully self-controlled.
The all-in-one -- very convenient

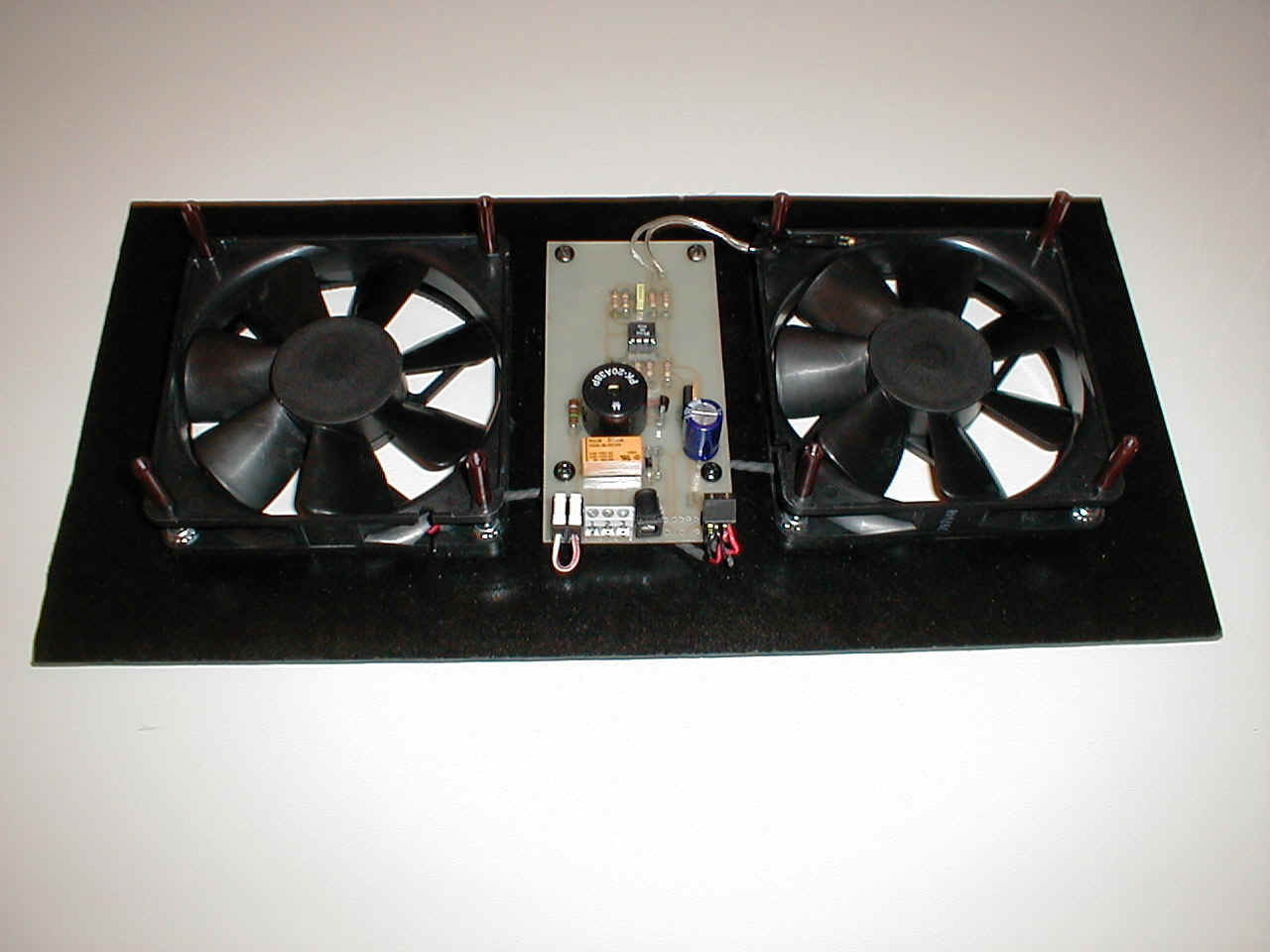

The original System 2, with all components mounted to a common base, mounts over a 6" x 13" (approx.) opening, usually at the top rear of the enclosure, and exhausts hot air. It has a thermistor mounted to its PC board and a second on a 4' lead; the hotter thermistor controls the fans' speed.
The kits -- very flexible
If the enclosure doesn't have an appropriate

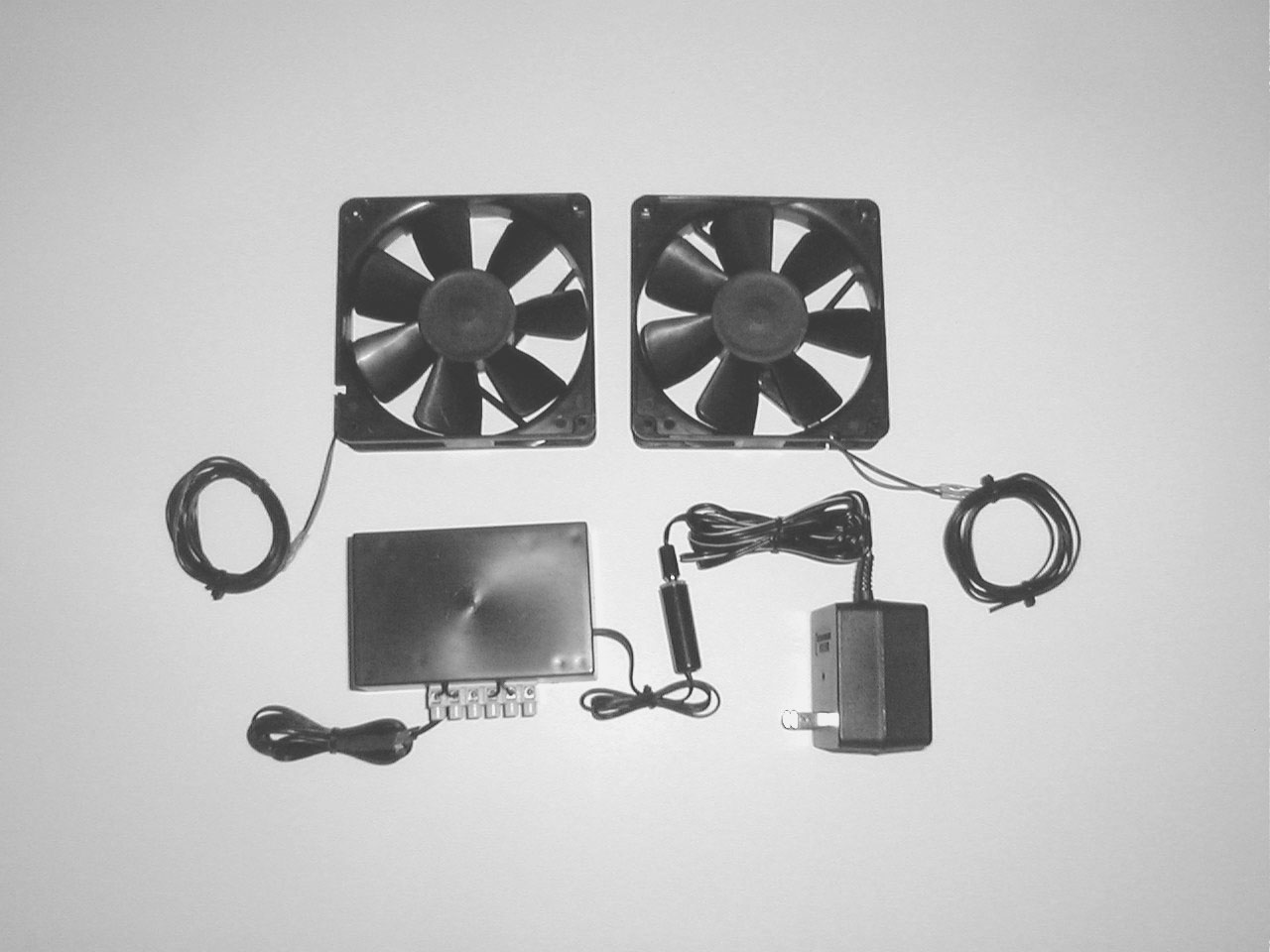

mounting spot for the original System 2, use the modular System 2 Kit, which includes
two pre-wired fans, grills, a "peel and stick" PWM control box, wall-type power
supply, and a single thermistor on a 4' lead. Mount the fans so that the air flow
passes over the hottest component(s), place the thermistor in a "hot spot", and
plug it in...........
For larger enclosures, or larger heat loads, use the
System 2+2 Kit. Similar to the System 2 Kit, but comes with four 120 mm fans.
Both kit versions are available with 80 mm fans on special order.
Specifications: Dimensions: (System 2) 16" w x 7 3/4" d x 2 1/4" h
Remember ----"It isn't cool to run hot"
