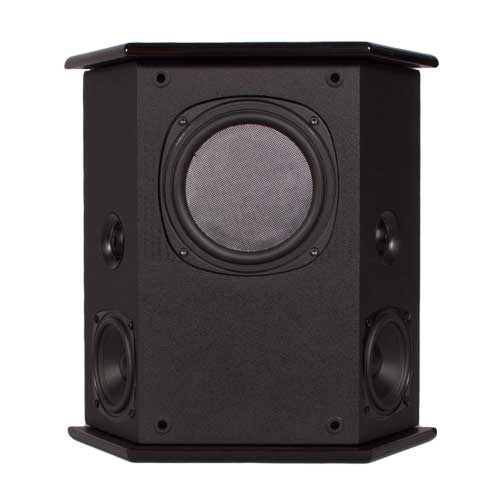

With a depth of only 5.5”, the PC-Surround-II produces the all-important surround audio from a low-profile on-wall position. Switchable bipole and dipole modes allow for customizable home theater sound. The PC-Surround-II features a patented 6.5” tri-laminate Kevlar/RPF®/Glass Fiber flat-piston woofer, two 4” polypropylene midranges and two 1” soft dome tweeters.
Specs:
| Nominal Impedance | 4 Ω |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Sensitivity dB @ 1W/1M (2) | 88 dB |
| Frequency Response (± 3 dB) | 60 Hz – 22 kHz |
| Max. Continuous Power RMS | 150 W |
| Recommended Power | 20 - 150 Watts |
| Crossover Frequency | 120 Hz; 2.5 kHz |
| Crossover Type | 3-Way Absolute Phase® |
| Grille - material | Black Cloth or White Cloth |
| Tweeter - part | 1″ Patented Woven Synthetic Soft Dome |
| Midrange - part | 4" Polypropylene |
| Woofer - part | 6.5″ Kevlar/RPF®/Glass Fiber Composite Flat Piston w/ NBR Surround |
| Height (SM = Height) | 15.25" |
| Diameter (SM = Width) | 14.5" |
| SM Depth (Including Bracket) | 5.25" |
| Weight | 19 lbs |
