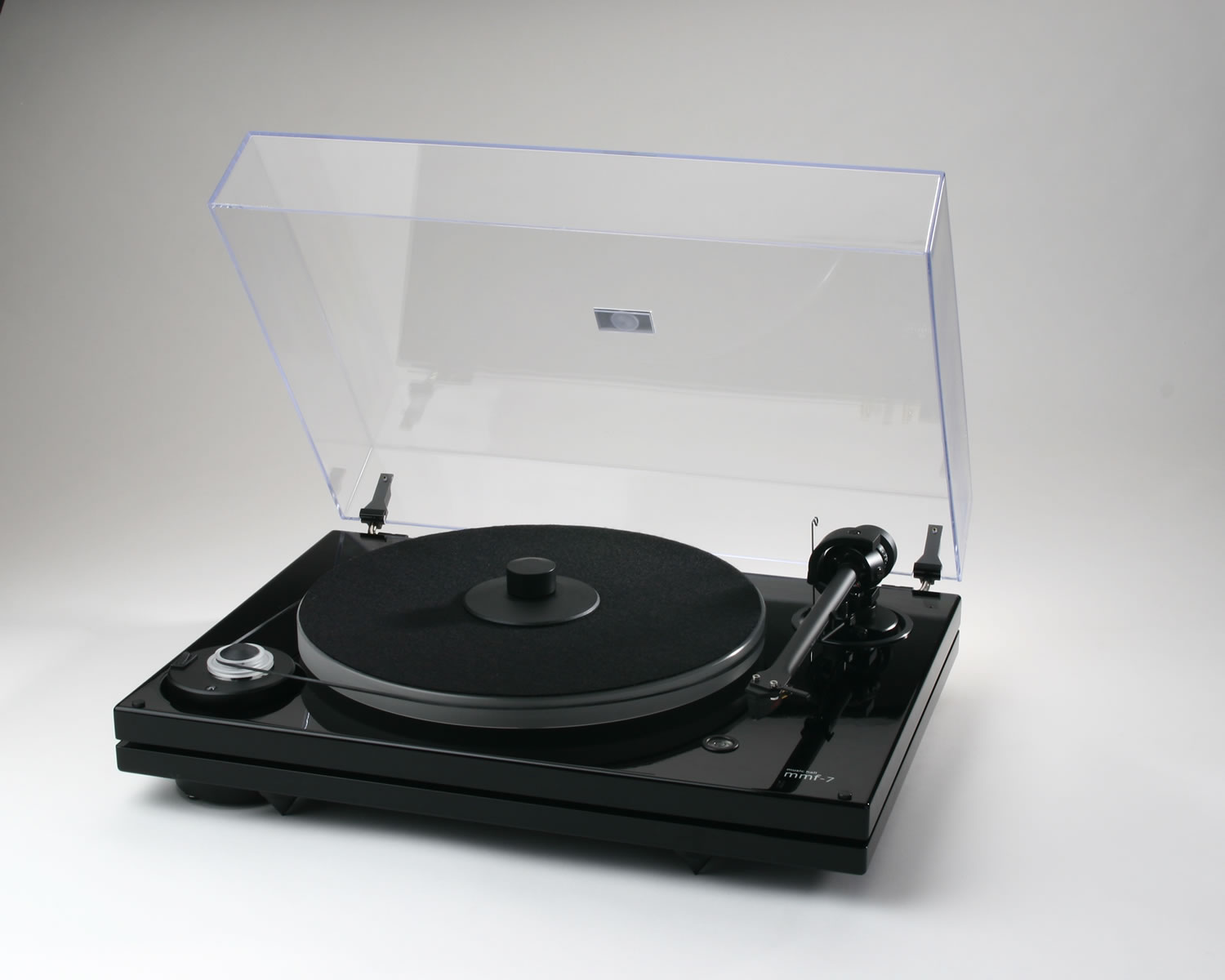

The music hall mmf-7 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall. The distinctive design isolates the critical sound reproducing components; platter, main bearing, tone arm, and cartridge on the top platform from the adjustable tip-toe feet which are mounted on the bottom platform. The motor, switch, and wiring are isolated on their own platform and completely decoupled from the turntable. Four Sorbothane hemispheres separate the two platforms and provide additional vibration damping. The mmf-7 comes in a high-gloss, piano black lacquer finish and is available with or without cartridge.
THE SPLIT-PLINTH.
The plinth has three adjustable spiked feet and comes with a set of small discs
(cups). The discs prevent marking of the surface of the supporting shelf. A
spirit level is incorporated on the top platform. The two platforms of the plinth
are separated by four Sorbothane hemispheres, which act as a suspension and
isolation system. External phono sockets are attached to the bottom platform.
A high quality interconnect is supplied.
THE MOTOR
The motor is 12 volt AC and comes with an external power supply. The motor rests
in a cutout on the front, left quadrant of the turntable. It is completely isolated
from the table and sports a blue LED. Placing the motor diagonally opposite
the arm reduces any vibrations caused by the belt from entering into the cartridge.
Any vibrations would be absorbed along the length of the arm thus bypassing
the stylus (The stylus moves from left to right, not front to back).
THE PLATTER
The belt runs round the perimeter of the acrylic platter. Acrylic was chosen
for it's superior sound quality and isolation properties. A screw-on record
clamp and felt mat are supplied as standard.
THE ARM
The Project Nine Tonearm has a headshell and shaft drawn from one piece of aluminum
tube. The bearings are made from hardened stainless steel points set in sturdy
ring cages. The Counterweight's center of gravity is level with the stylus tip.It
is decoupled from the arm and acts as a resonance damper. The arm also has adjustable
VTA, a damped arm lift and highly flexible internal wiring drawn from high purity
copper.
THE CARTRIDGE
The MMF-7 comes standard with a Goldring Eroica, High Output Moving coil Cartridge.
The Eroica H was chosen for its low mass, high rigidity body, rare earth Neodymium
magnet and its Gyger II line contact stylus. It is a perfect complement to the
Audiophile qualities of the
MMF-7 Technical Specifications:
Mains fed outboard power supply: 15-16V/50 mA
AC Speeds 33 1/3 rpm, manual commutation to 45 rpm
Deviation from nominal speed +/- 0,5%
Wow and flutter >+/- 0.08%
Signal to noise ratio >-70dB
Tracking force Effective, length of tone arm 9 inches
Overhang 18mm Platter diameter 11.8 inches
Platter weight 3,15 lbs.
Dimensions (w x d x h) 18.5 x 14.2 x 5.3 inches
Weight of the unit (incl. packing material) 25 lbs
Music Hall reserves the right to make technical modifications!
