Soundscape Product Listing
Vincent
Integrated Amplifier SV-236
Soundscape Price:$1,799.95
Technical Details
- Frequency range: 20 Hz - 22 kHz +/- 0.5 dB
- Nominal output power Class-A 8 Ohm: 2 x 10 Watt
- Nominal output power RMS 8 Ohm: 2 x 100 Watt
- Nominal output power RMS 4 Ohm: 2 x 180 Watt
- Input sensitivity: 260 mV
- Total harmonic distortion: < 0,1 % (1 kHz, 1 Watt)
- Signal-to-Noise Ratio: > 90 dB
- Input Impedance: 47 kOhm
- Mains supply: 230 V/50 Hz
- Inputs: 6 x RCA

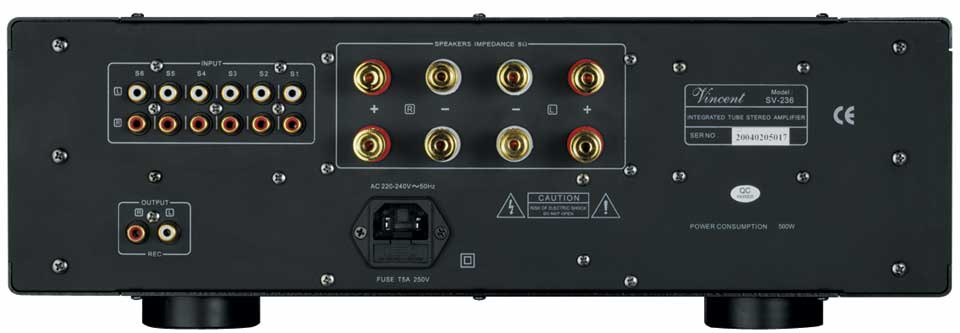

- Outputs: 4 x speaker terminals, 1 x RCA Rec Out, 1 x RCA Pre Out
- Dimensions (W x H x D): 430 x 152 x 430 mm
- Weight: 18 kg
- Color: black/silver
- Tubes: 1 x 12AX7; 2 x 12AX7
Extended Warranties
Available!
