The chassis is made of 19mm thick high density wood. This is flexibly bonded to a 5mm thick steel plate. This new sandwich is much better than ordinary construction in signal behavior and resonance absorption. The steel plate has laser made cut outs to make sure that no magnetic distortion influences the audio signal. Standing on 3 polymer-damped adjustable feet that are also height adjustable, the chassis is decoupled and isolated from the mounting surface.
The Thorens silent run bearing is made of 2 sinter bushes with a polished stainless steel axle running inside. The tungsten ball at the end is running on a self lubricating and absolute maintenance free bearing point.
The low noise AC-motor is supplied from an electronic motor drive unit. The output signal is generated completely independent from the mains power. With this you get much better wow/flutter and virtually no distortion from the mains power source.

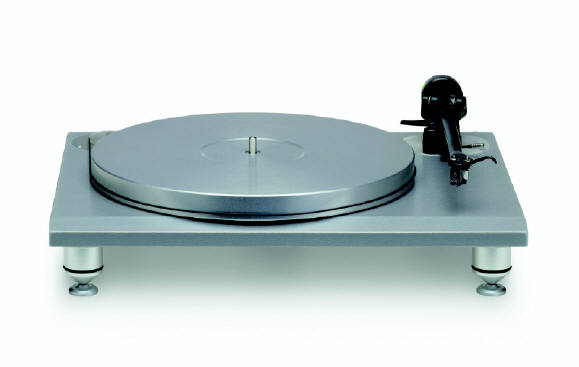

The 4 kg, 24mm thick platter is made of aluminium with a damping coating on the back side. To avoid any vibration it is belt driven. The new TD 810 comes with a Thorens TP 250 mounted.
SPECS:Drive System: Thorens Belt drive Motor: Fully
electronically regulated AC-Synchronius motor Speed: 33, 45 rpm Speed Select:
electronically Platter: 300 mm / 4 kg, non magnetic Tonearm: Thorens TP 250
Antiskating: magnetic Automatik: none Switch off: none Capacity of signal leads:
120 pF Power Supply: Electronically regulated Power Supply for AC Motor. Dimensionsn
(wxdxh): 420 x 330 x 115 mm Weight: 12 kg Colors available: Aluminium, black
Technical alterations without prior notice. The measured values for wow and
flutter, rumble and signal-to-noise ratio of all Thorens turntables are actually
so low and insignificant that we decided not to publish them.
Warranty for all Thorens Tables is Two years Parts and Labor!
