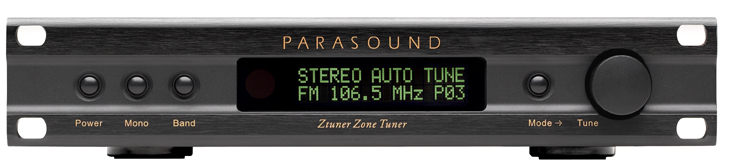

Ztuner - FM/AM tuner with two-way RS-232 control Ztuner
Features
Automatic, manual, and preset tuning
Two-way RS-232 serial port connection
Direct frequency access via remote and RS-232
Thirty station presets, switchable to eight for quicker scrolling
Forced Mono operation for mono zones
Remote handset assignable up to four different zones
Automatic on/off by 9 - 12 V trigger, with looping output
Fully remote controlled with discrete on/off commands
Rear panel infrared remote input and looping output
Gold-plated RCA output jacks
Multi-region European operation
Voltage switchable between 115v and 230v
Unique half-rack width chassis; 1 rack space high
Fastening hardware available for rack mounting
Parasound 10 year parts, 5 years labor warranty (For USA and Canada purchases only)
Specifications
Tuning range: FM 87.5 MHz to 108 MHz AM 520 kHz to 1610 kHz
FM sensitivity: Mono - IHF 10.8 dBf
Stereo - IHF 36.9 dBf for 50 dB of quieting
AM sensitivity: IHF 10 µV/m
S/N ratio: 74 dB stereo; 65 dB
IHF weighted FM stereo separation: 50 dB @ 1 kHz; 40 dB @ 10 kHz
Selectivity: FM, 80 dB AM, 30 dB
FM frequency response: 30 Hz - 15 kHz +/- 1 dB
AM frequency response: 20 Hz - 4.5 kHz +/- 2 dB
Total harmonic distortion:
FM Mono <0.08% FM Stereo < 0.18% AM < 0.5% Capture ratio: 1.5 dB
AM suppression: 60 dB
Dimensions: 9-1/2" w x 1-3/4" h x 10" d, 2" h with feet
Net weight: 4 lbs.
Specifications subject to change without notice.
