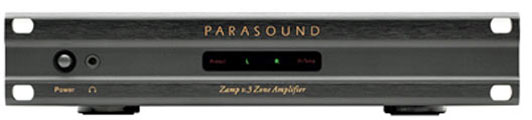

Fully discrete 45w x 2 amplifier
ZAMP-Zone Amplifier. The coolest amplifier on Earth. With its 9-1/2" width, it's the ideal bedroom, office, or small theater amplifier. In fact, we predict we'll see this true high-end amp in college dorms everywhere. 45 watts per channel at 8 ohms, 60 watts per channel at 4 ohms, 90 watts bridged into 8 ohms, Auto turn-on by audio signal or DC trigger, Fully direct coupled, Independent power supplies for each channel, Audiophile grade resistors and capacitors, Glass epoxy circuit board.
ZAMP-Zone Amplifier Specifications
- Continuous Power Output Stereo:
45 watts RMS x 2, 20 Hz-20 kHz, 8 ohms, both channels driven
60 watts RMS x 2, 20 Hz-20 kHz, 4 ohms, both channels driven- Continuous Power Output Mono:
90 watts RMS, 20 Hz-20 kHz, 8 ohms, minimum impedance- Current Capacity: 12 amps peak per channel
- Slew Rate: > 90 V/ micro second
- Frequency Response: 5 Hz- 100 kHz, +0/-3 dB at 1 watt
- Total Harmanic Distortion: < 0.07 % at full power; < 0.01 % typical levels
- lm Distortion: < 0.03 %
- TIM: Unmeasureable
- Dynamic Headroom: > 1.5 dB
- lnterchannel Crosstalk: > 80 dB at 1 kHz
> 60 dB at 20 kHz- Input Impedance: 33k ohms
- Input Sensitivity: 1 V
- SIN Ratio: > 100 dB, input shorted, IHF A-weighted
- Damping Factor: > 400 at 20 Hz
- Audio Trigger Sensitivity 5 mV to 200 mV 12V
- Trigger Current Requirement 15 mA
- AC Power Requirement 110 – 120 V / 220 -240 V, 50 – 60 Hz 1 watt standby; 220 watts full output
- Dimensions 9 1 /2" Wide 10" Deep with connectors 2" High with feet, 1 3 /4" panel only 241 x 254 x 50mm, 44.1mm panel only
- Net and Shipping Weight 6.65 lbs., 3 kg; 9 lbs., 4.1 kg
Specifications and features subject to change without notice.
