The Master Reference
is a small miracle of mechanical science - and yet, it is more than that: to
be a true masterpiece, it had to be designed and crafted with true devotion.
Beyond beauty and precision engineering, it is something else: passion.
Three stand-alone motors, sychronized with the Accurate Power Generator, ensure extremely low wow and flutter figures. The resonance-minimizing form of the Master Reference ensures absolute mechanical quietness. The precision-turned silicon/acrylic platter rests on an inverted bearing made of bronze and hardened steel, guaranteeing a long and trouble-free life. The Master Reference accepts up to three tonearms at one time.
Especially for
the Master Reference, Clearaudio has designed a new parallel-tracking tonearm,
the Clearaudio Master TQ-I. It is a thorough development of the long-established
Clearaudio/Souther TQ-I. Superb mechanical design and precise production provide
the foundation for a cohesive, dynamic sound throughout the complete musical
spectrum.
The Master Reference sells for $25,000 and comes with the industry leading 10 year warranty. Many arm/table packages are available. Please contact your authorized Clearaudio Reference dealer for more informtion on available packages.

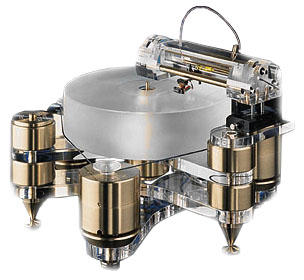

Pictured here with the Clearaudio Master TQ-I tonearm.
Pictured here with the Graham 2.2 tonearm.
|
The Master Reference Technical Data
|
|
|
Construction principle:
|
Geometrically, resonance-optimized shape
|
|
Speed of rotation:
|
33 1/3 rpm and 45 rpm
|
|
Drive:
|
Isolated motor, belt drive
|
|
Bearing:
|
Hardened steel, bronze plated, inverted
|
|
Platter material:
|
Acrylic, surface highly polished
|
|
Platter height:
|
80mm
|
|
Speed variations:
|
+/-0.01%
|
|
Signal to noise:
|
88 dB
|
|
Weight including motor:
|
110 lbs, 50 kg. without motors (Motor 11 lbs, 5kg)
|
|
Dimensions (W/D/H in mm):
|
500 x 400 x 240
|
|
Manufacturer Warranty:
|
10 years
|
